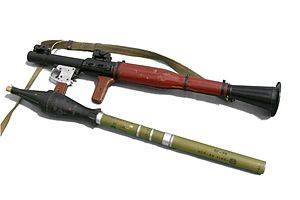

The RPG-7 is a portable, reusable, unguided, shoulder-launched, anti-tank rocket-propelled grenade launcher. Originally the RPG-7 , Hand-held anti-tank grenade launcher) and its predecessor, the RPG-2, was designed by the Soviet Union; it is now manufactured by the Russian company Basalt. The weapon has the GRAU index 6G3. The English-language term "rocket-propelled grenade", though frequently encountered and reasonably descriptive, is a acronym for "RPG" and not based on a literal translation.

Rpg


The ruggedness, simplicity, low cost, and effectiveness of the RPG-7 has made it the most widely used anti-armor weapon in the world. Currently around 40 countries use the weapon, and it is manufactured in several variants by nine countries. It is popular with irregular and guerrilla forces. The RPG has been used in almost all conflicts across all continents since the mid-1960s from the Vietnam War to the early 2010s War in Afghanistan. Widely-produced, the most commonly seen major variations are the RPG-7D paratrooper model (can be broken into two parts for easier carrying), and the lighter Chinese Type 69 RPG. DUO of Iran manufactures RPG-7s with olive green hand guards, H&K pistol grips, and a Commando variant.

The RPG-7 was first delivered to the Soviet Army in 1961 and deployed at a squad level. It replaced the RPG-2, having clearly out-performed the intermediate RPG-4 design during testing. The current model produced by the Russian Federation is the RPG-7V2, capable of firing standard and dual high explosive anti-tank (HEAT) rounds, high explosive/fragmentation, and thermometric warheads (see below), with a UP-7V sighting device fitted (used in tandem with the standard 2.7× PGO-7 optical sight) to allow the use of extended range ammunition. The RPG-7D3 is the equivalent paratrooper model. Both the RPG-7V2 and RPG-7D3 were adopted by the Russian Ground Forces in 2001.

Description Edit

The launcher is reloadable and based around a steel tube, 40 millimeters in diameter, 95.3 centimeters long, and weighing 7 kilograms. The middle of the tube is wood wrapped to protect the user from heat and the end is flared to assist in blast shielding and recoil reduction. Sighting is usually optical with a back-up iron sight, and passive infra-red and night sights are also available. The launchers designated RPG-7N1 and RPG-7DN1 can thus mount the multi-purpose night vision scope 1PN51 and the launchers designated RPG-7N2 and RPG-7DN2 can mount the multi-purpose night vision scope 1PN58.

As with similar weapons, the grenade protrudes from the launch tubes. It is 40–105 millimeters in diameter and weighs between 2.0 and 4.5 kilograms. It is launched by a gunpowder booster charge, giving it an initial speed of 115 meters per second, and creating a cloud of light grey-blue smoke that can give away the position of the shooter. The rocket motor ignites after 10 meters and sustains flight out to 500 meters at a maximum velocity of 295 meters per second. The grenade is stabilized by two sets of fins that deploy in-flight: one large set on the stabilizer pipe to maintain direction and a smaller front set to induce rotation. The grenade can fly up to 1,100 meters; the fuze sets the maximum range, usually 920 meters.

Propulsion system Edit

An Afghan National Army soldier firing an RPG-7, 2013

According to the United States Army Training and Doctrine Command (TRADOC) Bulletin 3u (1977) Soviet RPG-7 Antitank Grenade Launcher—Capabilities and Countermeasures, the RPG-7 munition has two sections: a "booster" section and a "warhead and sustainer motor" section. These must be assembled into the ready-to-use grenade. The booster consists of a "small strip powder charge" that serves to propel the grenade out of the launcher; the sustainer motor then ignites and propels the grenade for the next few seconds, giving it a top speed of 294 meters per second. The TRADOC bulletin provides anecdotal commentary that the RPG-7 has been fired from within buildings, which agrees with the two-stage design. It is stated that only a 2-meter standoff to a rear obstruction is needed for use inside rooms or fortifications. The fins not only provide drag stabilization, but are designed to impart a slow rotation to the grenade.

Due to the configuration of the RPG-7 sustainer/warhead section, it responds counter-intuitively to crosswinds. A crosswind will tend to exert pressure on the stabilizing fins, causing the projectile to turn into the wind. While the rocket motor is still burning, this will cause the flight path to curve into the wind. The TRADOC bulletin explains aiming difficulties for more distant moving targets in crosswinds at some length. Similar to a recoilless rifle the RPG-7 has no noticeable recoil, the only effect during firing being that of the sudden lightness of the launcher as the rocket leaves the tube.

Ammunition Edit

Rocket-propelled grenades

Inside of an RPG's three sections. The head contains the (1) trigger, (2) conductive cone, (3) aerodynamic fairing, (4) conical liner, (5) body, (6) explosive, (7) conductor and (8) detonator. The rocket motor consists of a (9) nozzle block, (10) nozzle and (11) motor body with (12) propellant in front of (13) the motor rear and (14) ignition primer. The booster charge includes the (15) fin, (16) cartridge, (17) charge, (18) turbine, (19) tracer and (20) foam wad.

The RPG-7 can fire a variety of warheads for anti-armor (HEAT, PG-Protivotankovaya Granata) or anti-personnel (HE, OG-Oskolochnaya Granata) purposes, usually fitting with an impact (PIBD) and a 4.5 second fuze. Armor penetration is warhead dependent and ranges from 30 to 60 centimeters of RHA; one warhead, the PG-7VR, is a 'tandem charge' device, used to defeat reactive armor with a single shot.

Current production ammunition for the RPG-7V2 consists of four types:

  • PG-7VL [c.1977] Improved 93 mm HEAT warhead effective against most vehicles and fortified targets. Replaces the earlier 85 mm PG-7V HEAT warhead
  • PG-7VR [c.1988] Dual 64 mm/105 mm HEAT warhead for defeating

modern armored vehicles equipped with reactive armor blocks. The first warhead (64 mm HEAT) detonates the reactive armor block prematurely and the second warhead (105 mm HEAT) passes through the gap to hit the exposed armor underneath.

  • TBG-7V [c.1988] 105 mm Thermobaric warhead for anti-personnel and urban warfare.
  • OG-7V [c.1999] 40 mm fragmentation warhead for anti-personnel

warfare (warhead is within caliber due to limitations of international treaties).[citation needed]

  • GSh-7VT [c.2013] Anti-bunker warhead with cylindrical follow-through blast-fragmentation munition followed by explosively formed penetrator.

Specifications Edit

Manufacturer specifications for the RPG-7V1.[11][12]

Name Type Image Weight Explosive weight[13][14][15] Diameter Penetration Lethal radius
PG-7V & VM Single-stage HEAT
2.2 kg (4.9 lb)
85 mm (3.35 in) > 260 mm RHA (10.24 in)
PG-7VL Single-stage HEAT 2.6 kg (5.7 lb) 730 g окфол (95% HMX + 5% wax) 93 mm (3.7 in) > 500 mm (20 in) RHA
PG-7VR Tandem HEAT 4.5 kg (9.9 lb)  ?/1.43 kg окфол (95% HMX + 5% wax) 64 mm (2.5 in)/105 mm (4.1 in) 600 mm RHA (with reactive armor)

750 mm RHA (without reactive armor)


OG-7V Fragmentation 2 kg (4 lb) 210 g (7.4 oz) A-IX-1 40 mm (1.6 in)
7 m (23 ft) (vs. body armor)

150 m without body armor

TBG-7V Thermobaric 4.5 kg (9.9 lb) 1.9 kg ОМ 100МИ-3Л + 0.25 kg A-IX-1(as thermobaric explosive booster) 105 mm (4.1 in)
10 m (30 ft)

Hit probabilities Edit

A U.S. Army evaluation of the weapon gave the hit probabilities on a 5-meter (16 ft) wide, 2.5-meter (8 ft 2 in) tall panel moving sideways at 4 meters per second (8.9 mph). This probability decreases when firing in a crosswind due to the unusual behaviour of the round; in an 11-kilometer-per-hour (6.8 mph) (3 m/s) wind, the gunner can not expect to get a first-round hit more than 50% of the time beyond 180 m.[17] Afghan National Police officer at a training site, ready to fire an RPG round.

Range Percent
50 m 100%
100 m 96%
200 m 51%
300 m 22%
400 m 9%
500 m 4%

History of use Edit

Accurate firing is difficult at ranges over 300 meters; the phrase "the closer the better" has always been true. During the Soviet–Afghan War, the mujaheddin tended to use the weapon at ranges of less than 80 meters. The RPG-7's predecessor, the RPG-2, was the main anti-tank weapon of Vietcong forces in the early stage of the Vietnam War, mainly used to counter the lightly armored M113 and other armored vehicles. This was, in turn, countered by mounting barbed wire bundles or sections of chain link fence, supported by 2 or 3 "U" shaped engineer stakes, in front of the vehicle as a portable stand-off defense.

The RPG-7 was used by the Provisional Irish Republican Army in Northern Ireland from 1969 to 2005, most notably in Lurgan, County Armagh, where it was used against British Army observation posts and the towering military base at Kitchen Hill in the town. The IRA also used them in Catholic areas of West Belfast against British Army armoured personnel carriers and Army forward operating bases (FOB). Beechmount Avenue in Belfast became known as "RPG Avenue" after attacks on British troops.

In Mogadishu, Somalia, rocket-propelled grenades were used to down two U.S. Army Black Hawk helicopters in 1993.

The Taliban (in Afghanistan) have formed armored-vehicle hunter/killer teams that work together with as many as 15 RPGs to destroy armoured vehicles, aiming for a mobility kill by firing at the tracks to stop the tank from moving, then attempting to destroy the main armor while the tank is disabled.
